具有 1366x768 的分辨率和 1600 万色彩的 15 " 电容式触摸屏 更快的处理速度和更大的内存 支持全动态视频预览和监视的 XTP 和 HDMI 输入信号 兼容所有的 IP Link Pro 控制处理器

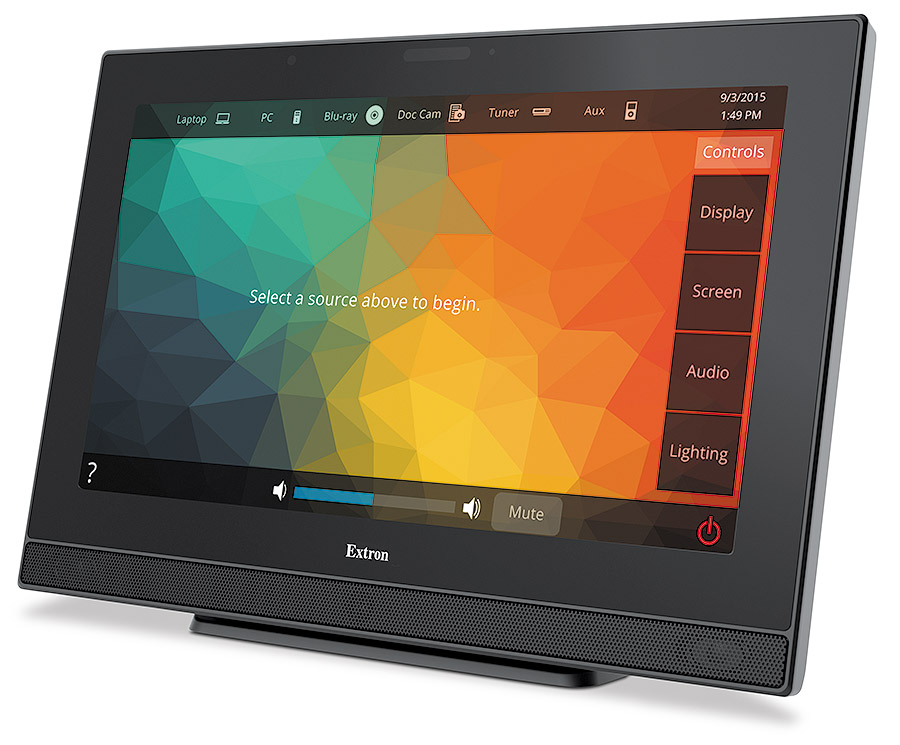

Extron TLP Pro 1520TG 是一款采用了电容式无边框玻璃触摸屏的 15" 桌面型触控面板。这款可定制的触摸屏具有更快的处理速度和更大的内存，其彩色 1366x768 电容式触摸屏能够提供鲜活的外观和更加灵敏的控制。TLP Pro 1520TG 的视频预览输入可支持来自 HDMI 信号源和 Extron XTP 设备、符合 HDCP 标准的高分辨率视频。便捷的 PoE+ 使触摸屏通过单根以太网电缆获取电源及进行通信。TLP Pro 1520TG 采用时尚的设计和功能的特性，非常适用于需要一款完全可定制、带有大尺寸控制面和多源视频预览功能的桌面型触摸屏的控制应用环境。
特性
具有 1366x768 的分辨率和 1600 万色彩的 15" 电容式触摸屏
更快的处理速度和更大的内存
支持全动态视频预览和监视的 XTP 和 HDMI 输入信号
兼容 IP Link Pro 控制处理器
PoE+ 可通过单根以太网电缆提供电源及进行通信，无需本地电源 - 电源合路器单独出售
内置扬声器支持立体声音频
光感应器可根据环境照明的变化自动调整 屏幕的亮度
可配置的红色和绿色状态指示灯用于指示 房间的状态：可用或正在使用
如果触摸屏未与控制处理器通信，系统连接状态指示灯就会提供视觉反馈
两个高速 USB 2.0 接口
3.5 mm 耳机插孔为触摸屏提供了本地音频输出
自动时钟同步使触摸屏能够显示准确的时间和日期
节能特性：
- 可调整的休眠计时器能让触摸屏进入休眠模式
- 运动探测器可将触摸屏激活
可放置在桌面，或安装在 VESA 支架上
| TLP Pro 1520TG | |
| Display | |
|---|---|
| | Active matrix TFT color display |
| | 15.6" (39.5 cm), measured diagonally |
| | 1366x768 |
| | 100 dpi |
| | Widescreen |
| | 24-bit, 16.7M colors |
| | 8 bit alpha channel |
| | 270 nits (cd/m2) |
| | 475:1 |
| | LED |
| | ±85° horizontal, ±80° vertical |
| | Capacitive |
| Memory | |
| | 512 MB |
| | 512 MB |
| XTP – Interconnection between transmitter and receiver | |
| | TIA/EIA T568A or T568B |
| | 330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better) |
| | Solid conductor, 24 AWG or better |
| | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
| Video input | |
| | Up to 1920x1200*, 2K, or 1080p (HDTV) * reduced blanking |
| | 1 HDMI (HDCP compliant) 1 XTP |
| | 1 female HDMI type A 1 female RJ-45 (shared with Ethernet interface) |
| | 18.75 kHz to 75 kHz |
| | 24 Hz to 75 Hz |
| | DVI 1.0, HDMI, HDCP |
| | 48 kHz |
| Video processing | |
| | 8, 10, or 12 bits per channel; 165 MHz pixel clock |
| | 1 billion (10 bit processing) |
| Control — Touchpanel | |
| | On/off |
| | On/off |
| Control – Ethernet interface | |
| | 1 female RJ-45 connector (shared with XTP video input) |
| | 100Base-T, half/full duplex with autodetect |
| | DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP |
| | Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1 |
| | |
| | Global Configurator Plus and Professional, GUI Designer |
| | Global Scripter |
| | Extron Control, iGVE |
| | GlobalViewer Enterprise, iGVE |
| | Toolbelt, Embedded Web page |
| Control — Host ports | |
| | 2 high-speed USB 2.0 devices |
| | 2 USB type A connectors |
| | USB 2.0, USB 1.1, USB 1.0 compatible |
| | Low speed (1.5 Mbps), full speed (12 Mbps) |
| Audio output – Speaker | |
| | 2 speakers (stereo), 86 dB SPL, 0.1 watt, 0.1 m, half space |
| | 750 Hz to 20 kHz, ±5 dB |
| | |
| | WAV (Microsoft RIFF) |
| | LPCM (uncompressed) |
| | Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit |
| | 2 kHz to 192 kHz |
| | Mono or stereo |
| Audio output – Line level | |
| | 1 stereo, unbalanced |
| | 1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND) |
| | 50 ohms unbalanced |
| | ±0.1 dB channel to channel |
| | -10 dBV (316 mVrms) |
| | >+8.2 dBV unbalanced at 1% THD+N |
| | >7.1 dBm unbalanced at 1% THD+N |
| General | |
| | Not included |
| | 12 VDC or Power over Ethernet Plus (PoE+ IEEE 802.3at) |
| Power consumption — Power injector (PI 140) with XTP | |
| | 25.1 watts |
| | 30.2 watts |
| Power consumption — PoE+ PSE | |
| | 23.5 watts |
| Power consumption — Power supply (PS 1230) | |
| | 23.3 watts |
| | 28.9 watts |
| | Storage: 5 to +140 °F (-15 to +60 °C) / 10% to 90%, noncondensing Operating: +41 to +104 °F (5 to +40 °C) / 10% to 90%, noncondensing |
| | Convection, vents on rear top and sides |
| Thermal dissipation — Power injector (PI 140) | |
| | 80.3 BTU/hr |
| | 98.0 BTU/hr |
| Thermal dissipation — PoE+ PSE | |
| | 75.0 BTU/hr |
| Thermal dissipation — Power supply (PS 1230) | |
| | 74.3 BTU/hr |
| | 93.4 BTU/hr |
| | |
| | Set on tabletop or mount to optional VESA D 100 mm panel mount kit |
| | Tilts through a 40° range |
| | Plastic |
 | |
| | 11.02" H* x 16.1" W x 9.4" D (280 mmH* x 408 mm W x 238 mm D) (*Maximum height includes base. Total height and depth depends on screen tilt.) |
| | 13.90 lb (6.3 kg) |
| | ISTA 1A in carton (International Safe Transit Association) |
| | |
| | CE, c-UL, UL |
| | CE, C-tick,FCC Class A, ICES, VCCI |
| | Complies with the appropriate requirements of RoHS and WEEE. |
| | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE All nominal levels are at ±10%. | |
| NOTE Specifications are subject to change without notice. | |
