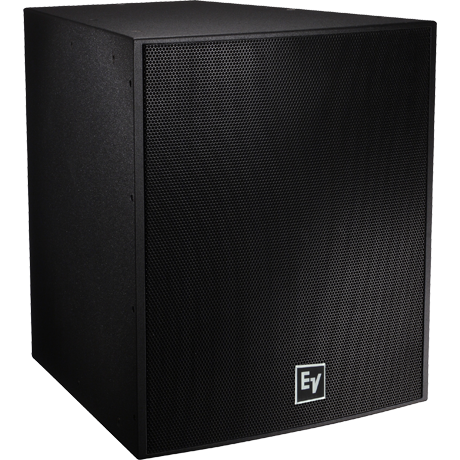

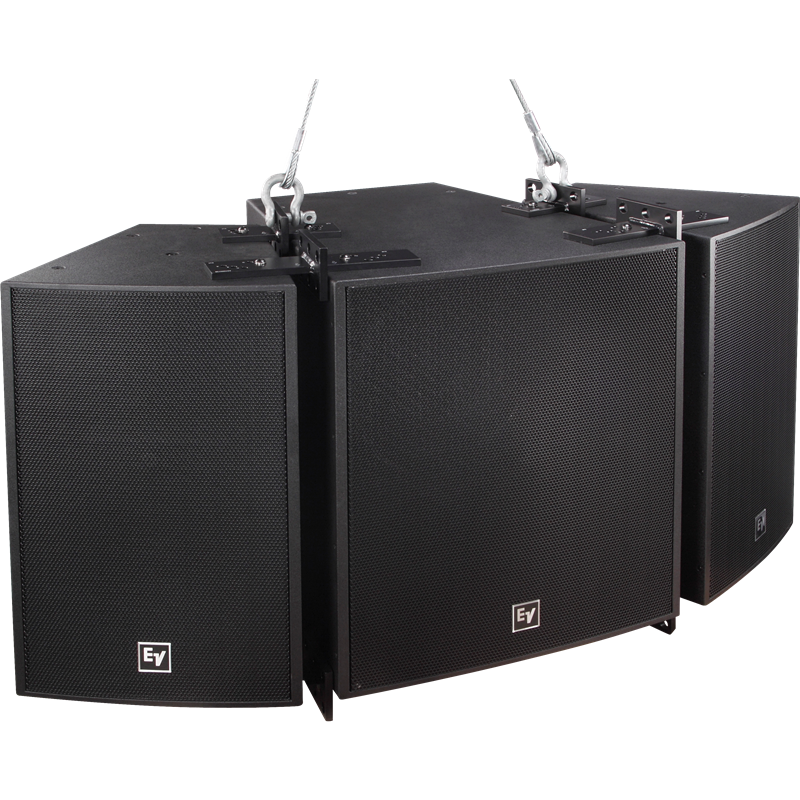

EVF-1181S单18"超低音音箱系统设计用作EVF系列产品的超低频率增强单元。EVF-1181S的尺寸与全频EVF型号完全一样,其配套吊装点可以进行
覆盖(-6dB标准) | Omnidirectional in normal operating range |
环境参数 | Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55 |
输入连接 | Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover |
额定阻抗 | Passive: N/A, Bi-amp: 8 Ω Biamp |
频率响应(-3分贝) | 35 - 100Hz |
频率响应(-10分贝) | 28 - 650Hz |
建议高通频率 | 33Hz |
灵敏度(1瓦/1米) | 99dB |
最大. 声压级/1米 (计算) | 131dB |
系统功率处理(连续/音乐//峰值) | 400, 800, 1600 Watts |
低频换能器 | EVS18SB, 18 in (457mm) Driver |
最小负荷阻抗 | Passive: N/A, Bi-amp: 6 Ω Biamp |
箱体材料 | 13 Ply Weather Resistant Birch |
栅格 | Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind |
吊挂 | (28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included) |
高度 | 768.6mm (30.26") |
宽度 | 675.6mm (26.6") |
深度 | 726.4mm (28.6") |
净重 | 45.9kg (101.19lbs) |
